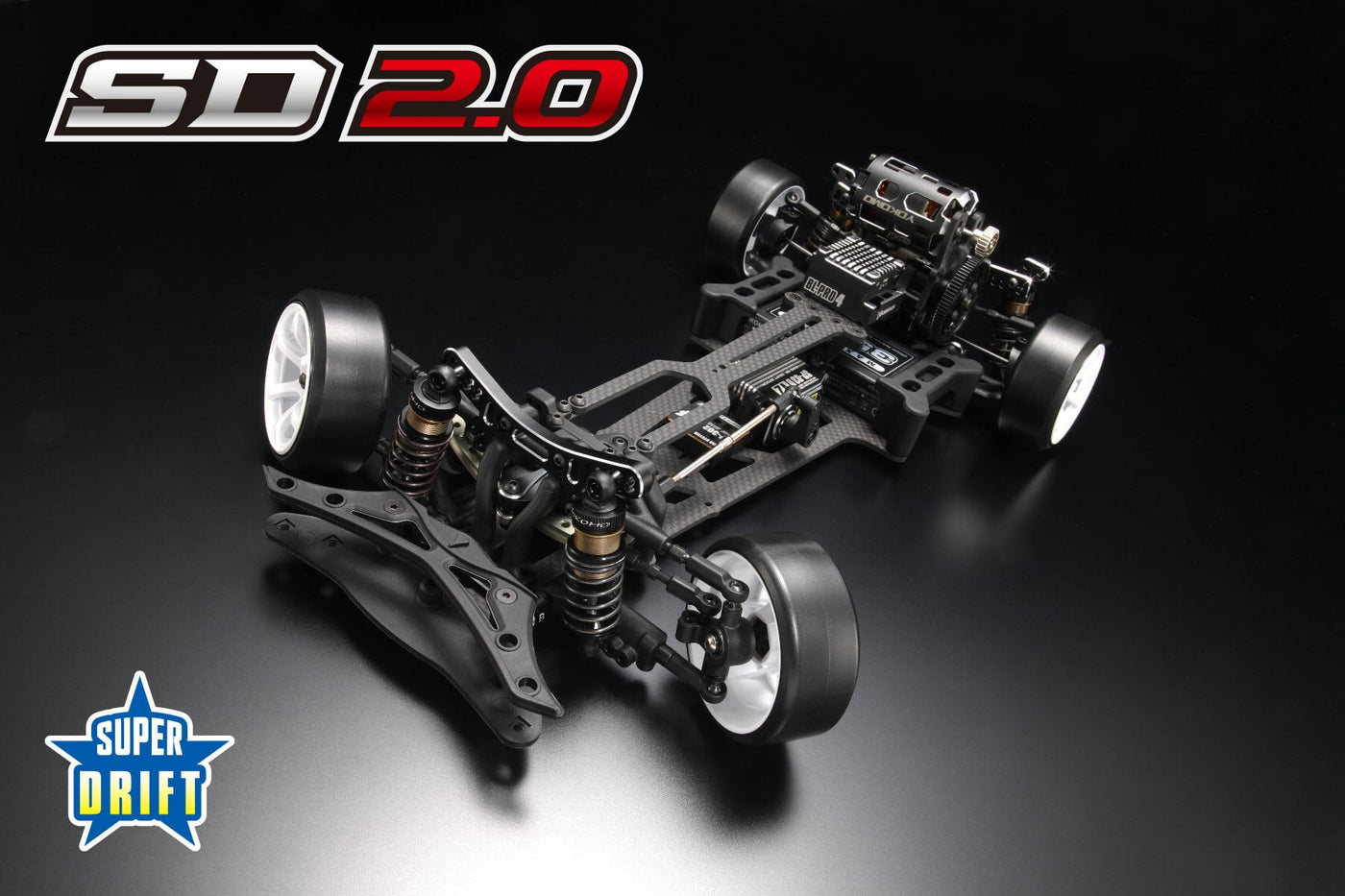

Yokomo Super Drift SD 2.0 Assemble Kit - SDR-020

The SD series of tuning drift cars, which can achieve various specifications by reconfiguring parts, has evolved into the latest version, SD2.0. While keeping the basic design of graphite double-deck chassis and gear-drive RWD, a thorough review of the weight balance and changes to the front Ackermann ratio have been made to further accentuate the latest RWD drift style.

Features:

Variable transmission with selectable positive torque (4 gears) or anti-torque (3 gears)

High-precision aluminum rear bulkhead

Rear diff accessible by simply removing/replacing the rear bulkhead cap

Rear traction adjustable by differential height adjustment

Separate chassis construction allows bulkhead height change

Servo mounts closer to the rear for 3:7 weight balance

Ackermann ratio setting with new steering block for improved maneuverability

New lightweight slide rack

New rear hub carriers for improved rear traction

Graphite double-deck chassis

A graphite double-deck chassis designed with rear load in mind specialized for drift driving. With a slim silhouette and overall meat-free, it has supple characteristics.

Lightweight front circumference

Front section with a resin bulkhead. By finishing the front part lightweight, a moderate front contact feeling and turning ability are achieved.

New steering block

A newly designed steering block to optimize the Ackermann ratio and increase the steering angle.

Lightweight Slide Rack

The lightweight slide rack rails held by three bearings also contribute to weight reduction at the front. The steering response has been enhanced for sharp handling.

Overwhelming cutting angle

It achieves maximum cutting angles as standard kits and supports deep drift angles. With an almost parallel Ackermann ratio, it is possible to drive smoothly even on low-grip surfaces such as P tiles.

Rear-mounted steering servo

Servo mounted closer to the rear via steerlink crank. In addition to this, it also supports the conventional bell crank system and the front inverted servo mounting.

Split rear section

The main chassis and the rear end of the upper deck are divided to increase the freedom of setting the rear section. Good maintainability.

Battery mounted at the far end

The running battery is dedicated to short-size Li-po. The battery position is set at the rear end to increase the rear load and gain traction. The weight distribution is 3 in the front and 7 in the rear, which is suitable for RWD drift cars.

Weight towards the rear axle

The motor is designed to be high-mounted on the rear axle to maximize rear tire traction. The motor position can be rotated around the spur gear axis.

Aluminum rear bulkhead

The aluminum bulkhead is highly accurate and achieves high driving efficiency. By recombining gears, it is possible to choose between 3 gears (positive torque) and 4 gears (anti-torque).

Newly designed rear hub carrier

The new rear hub carrier has been redesigned to revise the relationship between the axle and the sus pin position and roll more aggressively.

Aluminum oil dampers and springs

The suspension combines the well-established aluminum vehicle height-adjustable oil damper with a special spring for drifting. The rear is equipped with a progressive spring as standard that absorbs vibrations and enhances the feeling of grounding.
