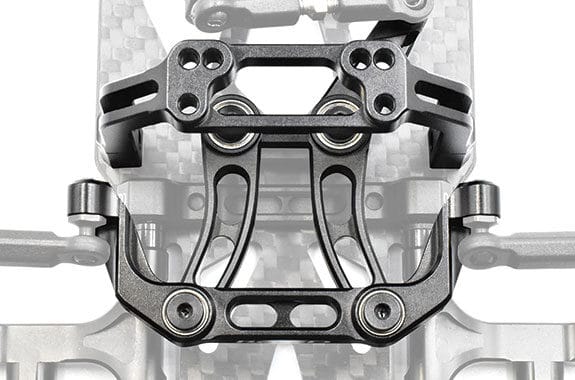

Reve D SG Bell Crank Set for Slide Rack YD-2 RD-014SR

The “Next-Generation” steering system, Reve D SG Bell Crank set.

By mounting the bell crank unit forward by 3 degrees, the horizontal angle change of the tie rods during steering operation is minimized and stable cornering characteristics are achieved. In addition, by mounting the ball stud for the tie rod horizontally, Ackerman adjustment with spacers is now possible.

There are two types available , for those who use a bell crank specification machine already, we have prepared a “bell crank specification set” and for those who use a slide rack specification machine a “Slide rack specification set” that includes the top deck and servo mount to convert to the bell crank system. Please try this incredible SG bell crank set that has not only the lighter and faster response advantages of the bell crank but also the benefits of the slide rack. The best of both worlds!

Versions available

RD-014BC

RD-014SR

Contents:

Alu. Bell Crank (1pc each for left and right)

Alu. Center Link (1pc)

Alu. Bell Crank Post (2pcs)

Alu. Bell Crank Base (3.0deg, 1pc)

Alu. King Pin (2pcs)

5mm, 0.1mm Shim (2pcs)

4mm, 0.1mm Shim (2pcs)

For slide rack version also includes

Alu. Bell Crank Bridge Set (1pc)

Alu. Servo Mount (2pcs)

Assembly Instructions / Parts List
