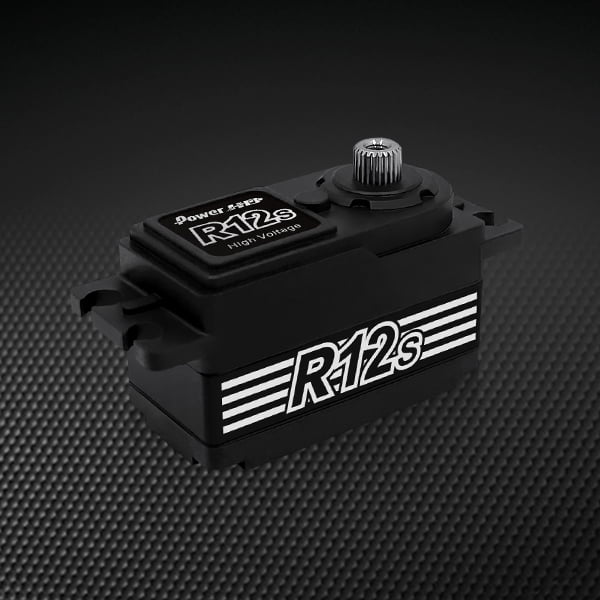

Power HD R12 Low Profile (0.06s/12.0kg/7.4V) Coreless Servo -R12s

Coming from Power HD is their new R12 low-profile digital servo for 1/10th electric applications. It features straight-line gears for 30 percent higher geardtrain efficiency, it is high voltage compatible and features an overall new design. The coreless motor servo is capable of pulling up to 12kg-cm of torque at as speed down to 0.06s, making it usable for 1/10th touring, off-road and pan car applications.

Specifications:

Torque (6.0V)

9.0kg-cm

Torque (7.4V)

12.0kg-cm

Speed (6.0V)

0.07s

Speed (7.4V)

0.06s

Operating voltage

6.0-8.4VDC

Weight

41.0g

Bearing type

Ball bearing x 2

Motor type

Coreless Motor

Gear Type

Titanium & Aluminium

Working frequency

1520μs/333hz

Size

41.0×20.0x26.4mm
