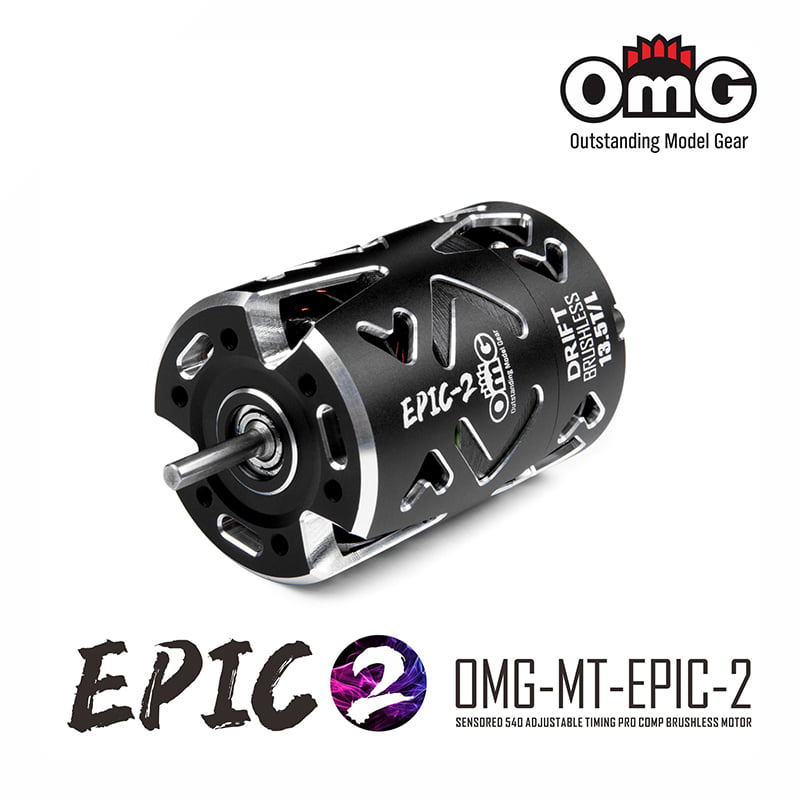

OMG 540 EPIC-10.5T Series Sensored Brushless Motor BLACK - OMG-EPIC-2-10.5T/L/BK
Sold & shipped by an RC Shopper marketplace seller
£0.00
OmG EPIC-2 Sensored Brushless Timing-Adjustable Top Motor for 1/10 drifting car
FEATURES:
0.2mm silicon steel stator laminations
N38UH neodym magnet as rotor material
Japan imported heat resistant ball bearings by NMB
Special designed internal mounted fan
Precise hall sensors
High Purity copper windings
2pcs Sensor Ports
PRODUCT PARAMETERS
KV(RPM/Volt): 3750
Applicable voltage (V):7.4-11.1V (2-3S)
No-load current:1.5A
Resistance:0.0155
Continuous current(A):65A
Continuous power(W):MAX550
Efficiency (%):93
Poles:2
Mounting hole depth:<5mm
Rotor:Φ12.3XΦ7.2x24.2mm
Length of extend shaft:14mm
Diameter length(mm):Φ35.8X54.8mm
Operational temperature:<150℃
Shaft diameter(mm):3.175
Weight:172g
