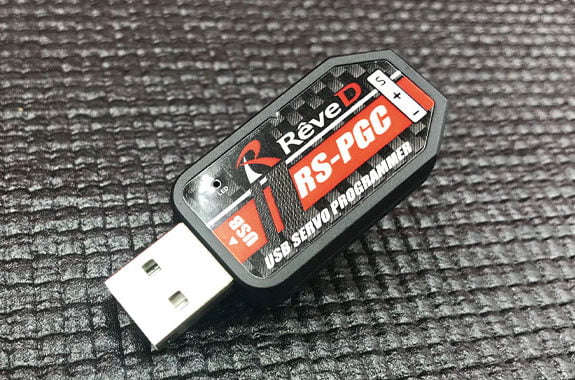

Reve D USB Programmer (2022) RS-PGCA

It is a USB programmer that makes it possible to support a wide range of RWD drift users from beginners to advanced users with the capabilities of RS-STA servo.
By selecting STANDARD mode or REVOX mode, you can set the recommended values for both case that using another brand of Gyro or the Reve D REVOX gyro.

In addition, by adjusting the following 10 types of setup items, it is possible to make settings according to various driving environments and drift driving skills and feel.

An extension cord for easier setup is also included!

New features

REVOX mode： Recommended value when using REVOX gyro

Standard mode： Recommended value when using a gyro made by another company

Adjustable features

SERVO TRIM： Adjust servo neutral position

TORQUE： Adjust the holding force of the servo : Commentary blog

TRQUE CURVE： Servo holding force curve adjustment : Commentary blog

SPEED CURVE： Adjust servo speed : Commentary blog

DAMPER： Adjust the brake for servo operation : Commentary blog

DAMPER POINT： Brake adjustment on the return side of servo operation : Commentary blog

MAX POWER： Power adjustment of the entire servo : Commentary blog

FREQUENCY： Servo frequency adjustment : Commentary blog

DEADBAND： Direct feeling adjustment : Commentary blog

DIRECTION： Change the operating direction of the servo : Commentary blog

Set up application software

Click the DOWNLOAD button below to download.

RS-PGCA Software ver2

Regarding supported OS

This machine is a programmer who sets each item with programming software. Please note that it is only perform with Windows.

Please click the link to take you to the:-

RS-STA Reve D Servo

RG-RVX Reve D Gyro
